T-Series Loading

A picture containing text, indoor, computer Description automatically generated

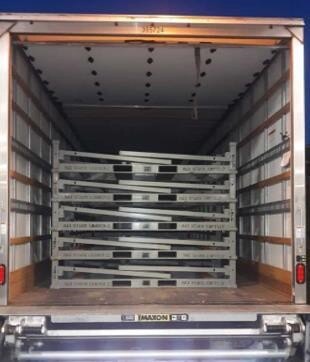

T-Series Crates loaded into a 26’ Box Truck

  • Max stack height 6 units, collapsed.
  • 48 units max can be loaded into a 26’ Box Truck.
  • Ensure gates are closed and are attached properly.
  • T-Series cannot be loaded in any other configuration than the collapsed stage as displayed in the picture.

T-Series Crates loaded into a 53’ Dry Van

  • Max stack height 6 units, collapsed.
  • 102 units max can be loaded into a 53’ Dry Van.
  • Ensure both gates are closed and are attached properly.
  • T-Series cannot be loaded in any other configuration than the collapsed stage as displayed in the picture.

IMPORTANT LOADING NOTE:

***DO NOT LOAD VERTICALLY.***

NEVER LOAD ON TOP OF ANY OTHER TYPES OF TK UNITS.

ONLY THE SAME TYPES OF UNITS CAN BE STACKED ON EACH OTHER. DO NOT STACK MIXED UNITS TOGETHER. EACH TYPE OF UNIT MUST BE IN ITS OWN STACK.

ALL HARDWARE MUST BE SECURED AND LOCKED INTO POSITION, AND ALL DUNNAGE MUST BE REMOVED. ENSURE CRATES ARE ALL STACKED IN THE SAME DIRECTION WITH PROPER ORIENTATION SO THE FORKLIFT CHANNELS ARE ACCESSIBLE.
