SP Large Truck Crate Loading

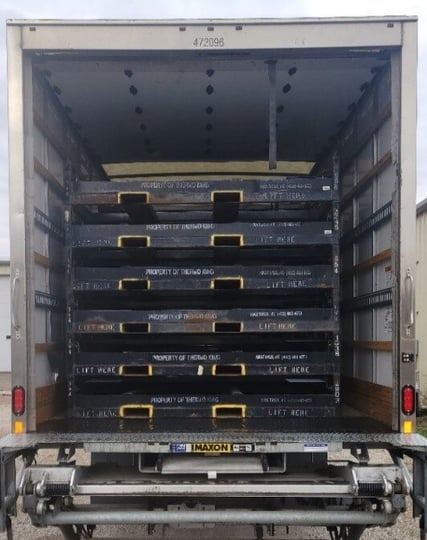

SP Crates loaded into a 26’ Box Truck

  • Max stack height of 6 SP Crates, collapsed.
  • 18 units max can be loaded into a 26’ Box Truck.
  • Ensure all uprights (Left and Right) are attached properly.
  • SP Crates cannot be loaded in any other configuration than the collapsed stage as seen in the picture.

SP Crates loaded into a 53’ Dry Van or Reefer Trailer

  • Max stack height of 6 SP Crates, collapsed.
  • 48 units max can be loaded into a 53’ Trailer.
  • Ensure all uprights (Left and Right) are attached properly.
  • SP Crates cannot be loaded in any other configuration than the collapsed stage as seen in the picture.

IMPORTANT LOADING NOTE:

***DO NOT LOAD VERTICALLY.***

NEVER LOAD ON TOP OF ANY OTHER TYPES OF TK UNITS.

ONLY THE SAME TYPES OF UNITS CAN BE STACKED ON EACH OTHER. DO NOT STACK MIXED UNITS TOGETHER. EACH TYPE OF UNIT MUST BE IN ITS OWN STACK.

ALL HARDWARE MUST BE SECURED AND LOCKED INTO POSITION, AND ALL DUNNAGE MUST BE REMOVED. ENSURE CRATES ARE ALL STACKED IN THE SAME DIRECTION WITH PROPER ORIENTATION SO THE FORKLIFT CHANNELS ARE ACCESSIBLE.
